LE CORBUSIER: CURUTCHET HOUSE

Façade of Curutchet. House. Photo by C. Zeballos..

SPANISH VERSION

The Curutchet House is the only work of Le Corbusier built in Argentina and the Americas (although Le Corbusier designed projects in the U.S. and Chile ). More importantly, this house is a masterpiece of Corbusian architecture, a superb example of the so-called “machine á habiter”, where the experienced Swiss architect superbly solved its form, function, space and lighting, using the elements and paraphernalia which are typical of its prolific theoretical and practical architectural background.. The Curutchet House is open to the public due to its preservation by the Institute of Architects of the Province of Buenos Aires, an institution that uses the house as its headquarters.

SOMETHING ABOUT LA PLATA.

La Plata is a unique city in South America and one of the best examples of Hygienism of the late nineteenth century on the continent (in this blog were have reviewed other cases of Hygienism in South America: the Plaza de Armas and the Chili River in Arequipa, Peru) .
La Plata’s urban layout, based on a gridiron designed by Pedro Benoit in 1880, differs from a typical Latin American colonial checkerboard in its size, the inclusion of several diagonals that cross the urban space and several landscaped tree-lined paths, which in summer cover the streets like green tunnels and in autumn turn the sidewalks into colorful carpets. The beauty of its monumental axis and the imposing size of the Moreno Square dialogue with the stature of its neo-Gothic cathedral, made of brick and completed only in 1999.
View from the Plaza Moreno, showing the City Hall and the Cathedral. Photo by C. Zeballos .

The Curutchet House is located in a residential area of La Plata, in a lot across a small trapezoidal triangular green area, a prelude to a huge park called El Bosque (the Forest). This closeness to nature and the adjacent building volumetric proportions, influenced Le Corbusier, who would consider these aspects to integrate the house to its surroundings.

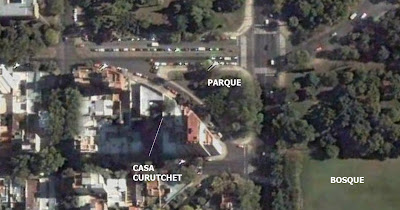

Location of the house facing the small park and close to El Bosque park
See location on Google Maps

Curutchet house across the street from El Bosque. Photo courtesy of Patricia Yarleque

LE CORBUSIER AND DR. CURUTCHET

The renowned Argentinian surgeon Pedro Domingo Curutchet wrote to Le Corbusier in 1948 requesting him to make a design for his new house. Curutchet never met Le Corbusier nor the latter visited the site, but the doctor kept a "close affinity” with the architect, whom he considered an innovative intellectual.


Sculpture inside the house. Photo courtesy of Patricia Yarleque

The program included an office, a house for the doctor, his wife and two daughters, a guest room and facilities.
For the construction of the house (1949-53) it was important to involve the renowned Argentinian architect Amancio Williams, who not only proposed changes to the draft of house (which Le Corbusier accepted) but also he was responsible for directing and executing the works. After the death of the doctor, the daughters gave their home in custody to the Colegio de Arquitectos de La Plata.


Le Corbusier with model of the Curutchet House. Photo courtesy of Patricia Yarleque


LAYOUT OF THE HOUSE

The building is organized around a central space that highlights the presence of a tree, which serves as a virtual boundary between public and private area of the house, differentiating two volumes that allow the function to be clearly distributed and the spaces to be organized under special characteristics.

The tree is integrated with the architecture and it also divides the public and private areas. Photo courtesy of Patricia Yarleque

First level

The visitor is welcomed by a small portico which, in addition to symbolically mark the entrance to the house, it provides a human scale suitable for the reception area. The interior space is separated from the street by a fine boundary defined by a thin fence. In addition to the pedestrian entrance there is also a vehicular access. The first floor is a forest of columns, which are organized in a grid layout, regardless of the location of the walls, allowing light to enter while giving a feeling of wide space. The services are locatedat the back of the house

In Argentina the first level is called Ground Floor. The first level is measured from the top to the ground floor. In this blog we have always called "first floor" to the street level, but differences can be found in the available literature.
First level. 3D image by C. Zeballos

Mezzanine


The ramp (which is independent from the stairs leading to residential area) leads to the mezzanine, which is the office. This is basically formed by a waiting area and consultation (the one that has better visuals). The area of internship, located in the back of the consultation, has independent toilets.

Mezzanine. 3D image by C. Zeballos
The ramp leads to the office. Photo courtesy of Patricia Yarleque
Second Floor

This is the social area of the house, from which you can access to a wide terrace running the entire width of the lot and from which magnificent views to the park can be enjoyed . To avoid too much solar incidence on the terrace, which would be unbearable in the summer, Le Corbusier suggested the use of a parasol and bris soleil, which, coupled with the tree, provide shade to the space.

Integrated into the terrace there are a double-height lounge and a dining room. The functionality of the kitchen, equipped with a service entrance, is unusual for the time in which it was designed.

"In the level of the house (...) the hall opens to the lounge (library to the right of the door, after the piano). The lounge opens to a double height room, to the north continues with the "patio" or "hanging garden" designed to create the most important part of the house, where one lays under the sun, the shade and the green. "LeCorbusier in a letter to Dr. Peter Curutchet on May 24, 1949. Vía EMOL


Second Floor. 3D image by C. Zeballos

Third Floor

Consists of two bedrooms, each with its own bathroom, the first for the doctor and his wife and the other one for their daughters. Opposite to the master bedroom there is a spatially integrated double-height studio. In the daughters bedroom it is possible to use a system of wooden blinds that controls the entry of light and brings privacy to the room.

Third Floor. 3D image by C. Zeballos
Detail of the wooden blinds in the bedroom. Photo courtesy of Patricia Yarleque

An analysis of the section allows to appreciate the rich visual and spatial relationships in the house, the way the space is modeled and the use of transparency in order to maximize the feeling of spaciousness in a small plot.

Schematic section. 3D image by C. Zeballos

THE FIVE ARCHITECTURAL PRINCIPLES.

Since the publication of his book Towards an architecture and his writings in L'Esprit Nouveau, Le Corbusier had proposed 5 key principles, characteristic of the new architecture, which were reflected in his most famous house, the Villa Savoye .The Curutchet House is also a good example to understand these five principles of Corbusian architecture.

a) The pilotis.

The house is arranged in a grid of columns, independent of the location of the walls, which raise the building from the ground, allowing the use of gardens and patios.

The pilotis allow light to enter inside while enhancing the feeling of space. Photo courtesy of Patricia Yarleque

b) The free plan

While freeing the walls from the structure, it eliminates the typical bearing walls of old houses, providing great flexibility in layout and interconnection of the spaces.

The structural layout is independent of the building's walls. Photo courtesy of Patricia Yarleque

c) Free Facade

Also a consequence of the independence of the structure, the façade becomes transparent as it is not composed of walls.

The facade becomes transparent. The bris soleil are also used as aesthetic elements. Photo courtesy of Patricia Yarleque
d) Ribbon windows.

The use of large windows and ventilation provides natural light to the space.

The ribbon window allows magnificent views and generous natural light. Photo courtesy of Patricia Yarleque

e) Terrace garden

Utilization of the terraces for domestic purposes, among which may include garden areas.

Use of the terrace as an extension of space. Photo courtesy of Patricia Yarleque

OTHER PRINCIPLES APPLIED IN THE HOUSE Corbusian

The Modulor

As mentioned in previous post , the modulor is a proportional system created by Le Corbusier, based on anthropometric measures and the golden ratio , because he believed that the proportion of the buildings was necessary to express beauty. The architect used this system to design the house elements, distances and the height of the ceiling (Williams had to ask special permission in the city of La Plata to build rooms with a height lower than the regulation).

Promenade Architecturale

The visual sequence along the route is always offering a new experience of space. At each step, we appreciate the harmonious succession of spaces and the fine use of the light. This spatial arrangement can be perceived, for example, in the course of the ramp, an element created primarily for the exaltation of the internal space. In the words of Dr. Claudio Conenna, "with these elements, Le Corbusier creates dynamic spatial situations, varied perceptions of visuals and perspectives, aside of a consistent transition of scale and lighting in the whole space, with the intention to move (both kinetic and emotionally) to the man who lives the building. "



Click here to see a video tour of the house.

Bris SoleilBris Soleil
"The arrangement of the pots of plants and shrubs and some small stones (east) will help to maintain the necessary green. "(Ibid)

Not only the front facade, but the internal one use bris soleil. Photo courtesy of 86 partner

Le Corbusier has had enormous influence on twentieth-century architectural practice. Notable disciples who worked with him are Oscar Niemeyer and Mario Botta , and his ideas have exerted significant influence on the work of Richard Meier and Tadao Ando . In fact, many aspects of the Corbusian vocabulary are still being used nowadays. He is a master of whom we continue learning today.

*Special thanks to Architect Patricia Yarleque
